Flat Plain Coulter Disc Blade
SKU: HB-FCD-004
Boron Steel 30MnB5
Continuous Automated Induction Quenched (48–52 HRC)
Shatterproof
High core elasticity absorbs rocky impacts without cracking.
Anti-Rust Protection
Electrostatic polymer powder coated for ocean export journeys.
Coulters
In Stock

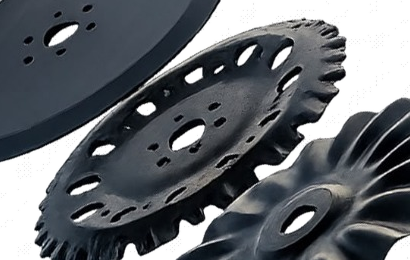

Flat Plain Coulter Disc Blade
Precision flat circular coulter disc blades for zero-till drills, row planters, and high-speed fertilizer openers.
Pricing Structure
Request Coulter Pricing
Direct Factory OEM
Recommended Applications
No-Till Planters
Seed Drill Openers
Liquid Fertilizer Coulters
Air Seeders
Engineering & Design Overview
Hero Flat Coulters deliver pinpoint slicing accuracy through surface residue with minimal soil throwing. Built with flat plate tolerances under 0.5mm runout, they ensure uniform seed furrow opening and consistent seeding depth.
Induction hardened cutting perimeter ensures long edge retention in stony and hard no-till soils without chipping or edge deformation.
Key Engineering Features
- Ultra-flat runout tolerance (<0.5mm)
- Precision ground knife-edge bevel
- High tensile resistance to side deflection
Technical Specifications
| Hardness | 49 – 53 HRC |
|---|---|
| Bevel Angle | Double Bevel 18° / 22° |
| Center Hole | Round / 4-Hole / 6-Hole Hub Mounts |
| Diameter Range | 14" to 24" (355mm to 610mm) |
| Material Thickness | 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm |
